Blowholes
I had always wanted to add a fan to the bottom of the case but with the 120mm case fan having to go I decided to stick a 80mm blowhole at the top of the case as well
 |
 |
 |

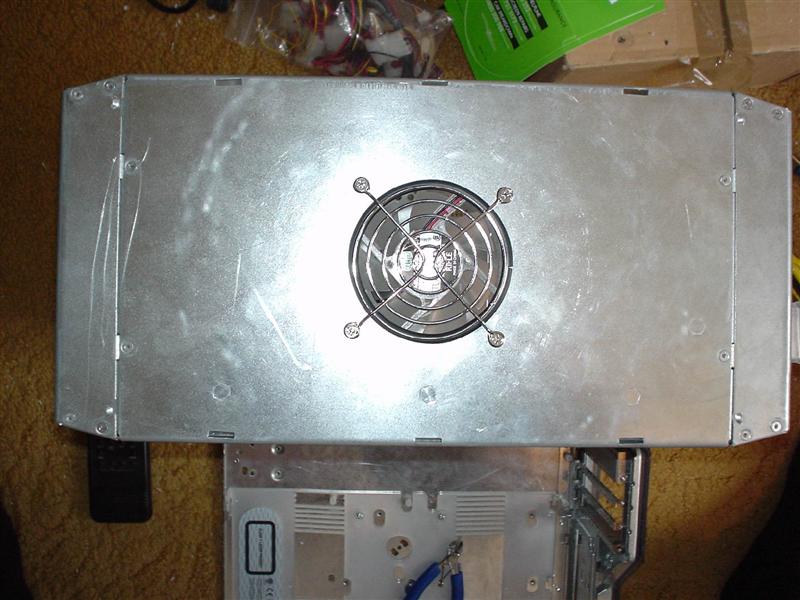

To make the bottom blowhole I cut out the hole with my trusty dremel. With the hole cut and filed back to shape. The bolt holes were drilled out as well.
 |
 |
In order to prevent dust being sucked up into the case I fitted a filter to the bottom fan.
 |
 |
 |
With the top fan I repeat the same dremel process as before to create the blowhole in the steel chassis.
 |
 |
 |
This time I added some blowhole trim as it is going to be on show. I then had to cut the perspex section as well to get air out of the case.
 |
 |
 |
The perspex was again cut with a dremel then filed back to shape with a sander. With the white LED fans the top blowhole looks ace.
